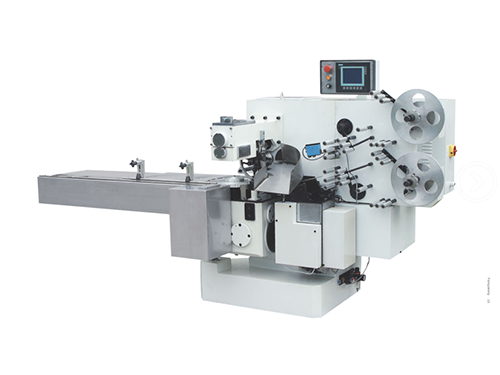

| 單扭/雙扭結巧克力包裝機 |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.此機將不適合通過理料盤自動整理的巧克力及糖果，通過輸送帶將物料直接輸入，并通過機械將物料推入理料盤進行扭 結包裝。 2.整機結構緊湊，運行穩定。 3.光電跟蹤、觸摸式液晶顯示及PLC控制， 操作簡單直觀。
1.Chocolate and Candy which are unfit for automatic arrangement wil be fed by conveyor belt，then to be pushed into feeding plate by m echanism. 2.Machine structure is compact and performance is stable and easy to operate. 3.Photoelectric tracking，LCD touchscreen and PLC control，easy and intuitive to operate. |
| 包裝范圍APPLIED RANGE |
巧克力、糖果等有規則食品 Suitable for chocolate， candy and other regular shape products. |
| 標準型/Standard Type | |
| 包裝尺寸/Packing Size | 長length 25-40mm 寬width 15-20mm |
| 包裝速度/Packing Speed | 20-300bags/minute(包/分) |
| 電源功率/Power Supply | 380V.3.0KW |
| 外型尺寸/Outline Size | 2800X1050X1550mm |
